Home > Products > YBBP EXPLOSION-PROOFFREQUENCY CONTROL 3PHASE HRONOUS MOTORS > Synchronous speed 600r/min
YBBP series of explosion prooffrequency control three-phase asynchronous motor is our company on the basis of YB3 series motors.combined with the current state, internal and external electromagnetic structllre, technology, materials and other aspects of the new technology and new product development.
YBBP series of explosion prooffrequency control three-phase asynchronous motor is our company on the basis of YB3 series motors.combined with the current state, internal and external electromagnetic structllre, technology, materials and other aspects of the new technology and new product development. It is characterized by the use of motor and frequency converter, can achieve a wide range of smooth step less speed regulation, in which the frequency range of 5~50Hz for constant torque converter, 50~100Hz for constant power frequency conversion motor with axial flow fan, ensure that the cooling effect at different speeds,to ensure motor safety, normal operation.
This series motor power rating,installation size to meet the standard of the International Electrotechnical Commission (IEC) and the corresponding relationship with Germany DlN4267 standard is the same, is conducive to supporting the export of equipment and the introduction of equipment spare parts.
This series of motors is in accordance with the GB3836.1-2010*explosive environment first parts:General requirements for equipment and BG3836.2-2010“explosive environment: the provisions of the”d“protection equipment, also in line with the requirements of Bs4683EN50018 and lEC79-1.E x d I Mb,E x d II AT4Gb,E x d 1I BT4GbExdllCT4 G b ,are used in explosive environment.
E x d I Mb installed in the coal mine methane explosive environment equipment, with the“high” protection level, the level of security,so that the normal operation of the equipment or in the sudden emergence of gas and equipment failure conditions are not possible to become a light source, suitable for non working surface with electrical equipment
E x d ll AT4Gb、E x d ll BT4Gb is suitable for the equipment of explosive gas environmen, such as coal mine, chemical, chemical.etc.
ExdllCT4 G b Apply to factory there are hydrogen and acetylene in the dangerous sites with explosive air mixture.
This series of explosion-proof frequency control three-phade asynchronous motor and frequency conversion device constitute the speed control system and other speed control mode compared with energy saving effect is remarkable,the speed performance is good, the speed range is wide, with low noise, vibration, can be used with all kinds of domestic and foreign inverter, help to achieve automatic control.

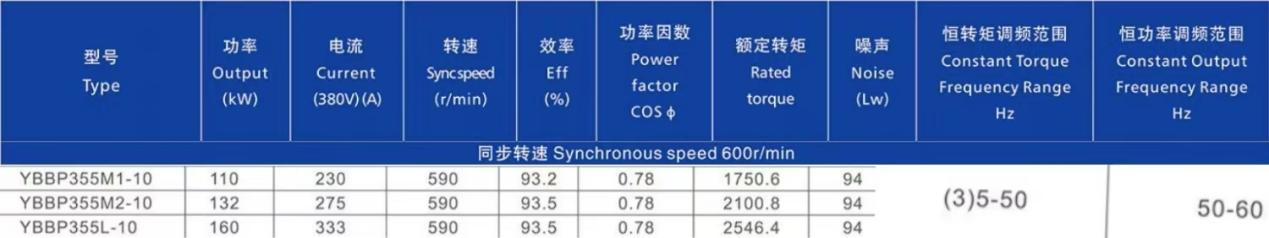

TECHNICALDATE
